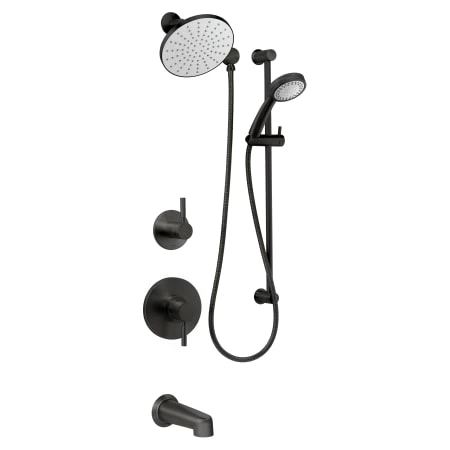

Miseno Mia Pressure Balanced Shower System with 1.8 GPM Rain Shower Head, Hand Shower, Slide Bar, Tub Spout, and Standard Shower Arm

MTS-550425E-S-SBHS Shower System Package Includes:

• Pressure balancing valve trim with rough in valve MSV4001
• Diverter valve trim with rough in valve MNO6103
• 7-7/8″ single function shower head
• Wall mounted 6″ standard shower arm
• Multi function hand shower with 60″ hose and wall supply
• 28″ slide bar with adjustable handshower mount
• 7-1/4″ tub spout

MTS-550425E-S-SBHS Key Features:

• Solid Brass Waterways: Quality is important; that’s why Miseno shower faucets feature solid brass waterways, recognized industry wide as the best and most durable material for use in plumbing applications.
• Premium Plated Finishes: Miseno shower faucets feature premium plated finishes, guaranteed to resist corrosion, tarnishing and discoloration for the life of the shower. Premium Plated Finishes: Miseno shower faucets feature premium plated finishes, guaranteed to resist corrosion, tarnishing and discoloration for the life of the shower.
• Easy-Clean Nozzles: Miseno’s shower heads feature rubber-like nozzles that resist build-up and calcification. Keep it performing like new with just the swipe of a finger.
• Lifetime Warranty: Miseno shower faucets are covered by a Limited Lifetime Warranty on both finish and function. Our finishes resist tarnishing, and our faucets are engineered to rival the biggest names in the industry.

Valve Trim Specifications:

• Valve trim constructed of brass
• Rough-in valve included with this package
• Included six way diverter valve allows for up to three separate outlets and shared flow functionality
• Valve Trim Height: 6-11/16″ (top to bottom)
• Valve Trim Width: 6-11/16″ (left to right)
• Diverter Valve Trim Dimensions: 4-5/16″ H x 4-5/16″ W

Shower Head Specifications:

• Single function showerhead constructed of brass featuring a rain spray pattern
• Shower head operates on a swivel ball assembly – giving you the ability to put the water exactly where you want it
• Shower Head Flow Rate: 1.8 gallons-per-minute
• Shower Head Height: 2-5/16″ (top to bottom)
• Shower Head Width: 7-7/8″ (left to right)
• Shower Arm Length: 6″

Hand Shower Specifications:

• Multi function handshower constructed of brass with 5 spray settings featuring rain spray patterns
• Hose Length: 60″
• Slide Bar Length: 28″
• Hand Shower Flow Rate: 1.8 gallons-per-minute
